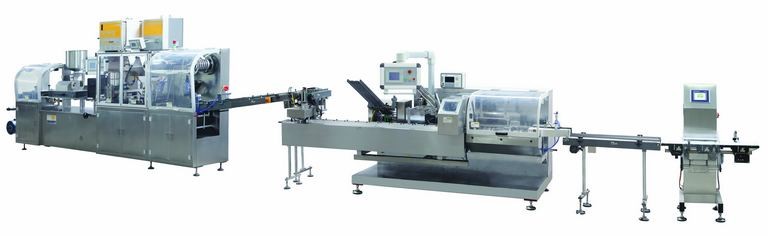

This production line is DPP-250Z blister packing machine together with ZHW-100 carton machine

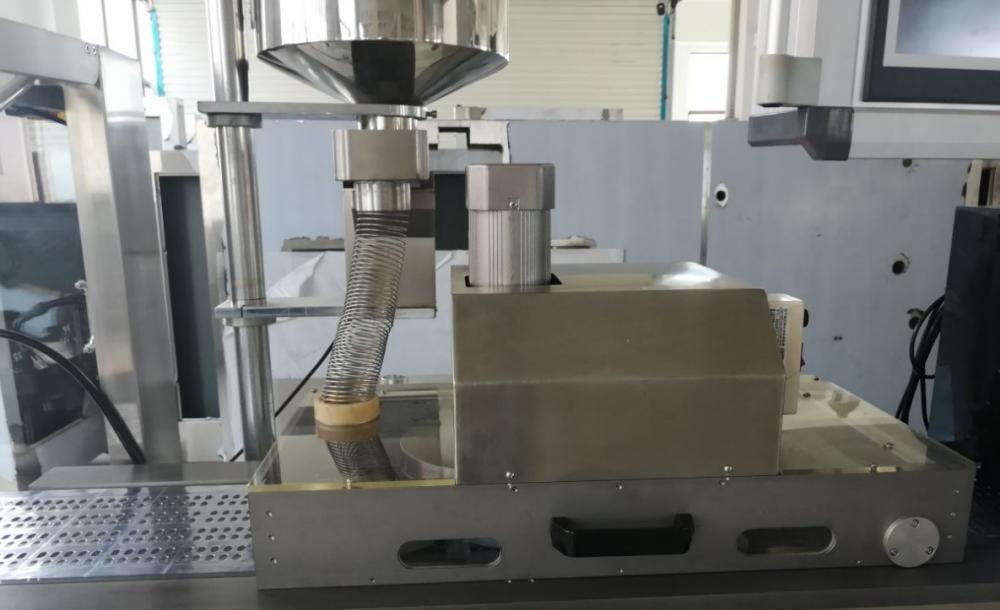

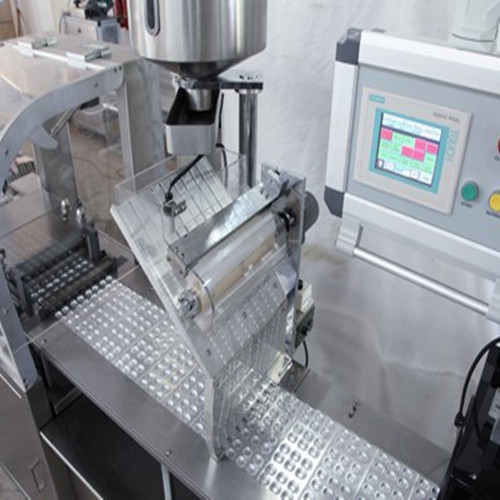

Alu-Alu vibrating feeder Alu-PVC universal brush feeder
This machine adopts intelligent driver and PLC Human Computer Interface.(PLC SEMENS)
Strock can be adjustable (servo motor driver control): On the required changes to blister specifications, not to add or replace parts, use of servo motor drive control, its traction strok by the 60-145MM distance adjustable, smooth and accurate implementation of the blister specifications replacement.Mould insert position device: change mould more accurate and facility.
Main technical parameters:
Max output: ≤ 100 cartons/min
Max Forming area and depth: 245*100*35mm
Leaflet Size: (100-260)*(100-170)mm
Carton Size: 250-350g/㎡
Weight: 5000kg
Carton Size: (60-230)*(20-140)*(14-80)mm
Air compressor: 0.6-0.8Mpa ≥0.8 m³/min
Leaflet material: 50-70g/㎡
Power: 380V 50Hz 8Kw (200V, 60Hz)
